Automatic
Water Filling Machines , Gravity Bottling Line Equipments For Still Water
Qucik Detail:
1.10,000BPH (500ml) Rated capacity
2. Gravity filling Method
3. For mineral water , pure water
4. 3-in-1 filling monoblock, combined with rinsing, filling and
capping
5. Full automatic
6. Number of working positions :rinser 24, filler 24, capper 6
Specifications:
Model | CGF24-24-6 |
Number of working positions | rinser 24, filler 24, capper 6 |
Rated capacity | 10,000BPH (500ml) |
Filling method | Gravity filling |
Air supply pressure | 0.7 MPa |
Air consumption | 0.8M3/min |
Rinsing water pressure | 0.2-0.25 MPa |
Rinsing water consumption | 1.8 tons/hour |
Main motor power | 2.2Kw |
Installed power | 3.5Kw |
Dimensions | 2830×2130×2700mm |
Machine weight | 5000Kg |
Description:
The
water line is composed of separate rinsing, filling and capping units. It is
innovated and designed in the requirement of still pure water and
mineral water in big jars, on the bases of introducing, digesting
and absorbing advanced technology from Germany and Italy.
Applications:
Still water, pure water, RO water, mineral water, sparkling water,
etc. in 3L, 4L, 5L, 6L, 8L, 10L bottles and jars
Competitive Advantage:
Main features
Rinsing Machine
Spring cramps are used in the bottle washing process. The empty
bottles can be turned over 180° along the conveying rail. There are
two times of internal and external washing, the efficiency of
bottle washing is high.
Rinsing machine adopts our company original overturn and
double-opened bottle clip. Bottle clip lock the bottleneck, the
material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive
droplet with the angle 15° ensures to wash all side of the bottle,
and can save the water.
Filling Machine
The design of filling structure is reasonable and hygiene dead
angle, the run of equipment is stable, it can control the material
from the bottleneck, the control accuracy is within ±2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after
filling valve contact the bottleneck, it starts to fill.

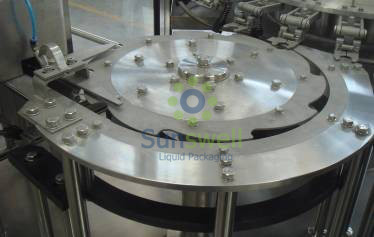

Bottle is conveying by the wheel in the filling part.
Screw Capping Machine
Screw capping machine is most precision part in the machine, which
has a big influence to the goods stability and defective rate. Our
screw capping has following feature.
1) Our company import of advanced technology of screw capping,
improve the stability and reliability of the screw capping machine.
The magnetic torque is used for screw capping. The power of screw
capping can be adjusted without steps. The power of the screw
capping can also be fixed, and the caps will not be damaged, the
capping is reliable.
2) In the screw capping part, installed photoelectricity control,
when it has no cap or the cap is bad, the machine will stop
automatically.
Main Specification
Touch screen: Thinget
PLC program controller: Mitsubishi
Inverter: Mitsubishi
Photoelectrical controller: Omron
Proximity switch: Omron
Other electrical components: Schneider
Pneumatic component: Airtac
Pump: Nanfang
Main motor: Siemens
