Full Automatic Liquid Pure Mineral Drinking Soda Water Bottle Washing Rinsing Filling Bottling Capping Machine

General Description:

3 in 1 monoblock bottle water making machine can be applied to the production of mineral water, purified water, flavor water and low alcoholic drinks, etc. The water filler machine can be used for different water filling line.

Suitable bottles:

Technical Parameters:

Main features
1. Bottle infeed

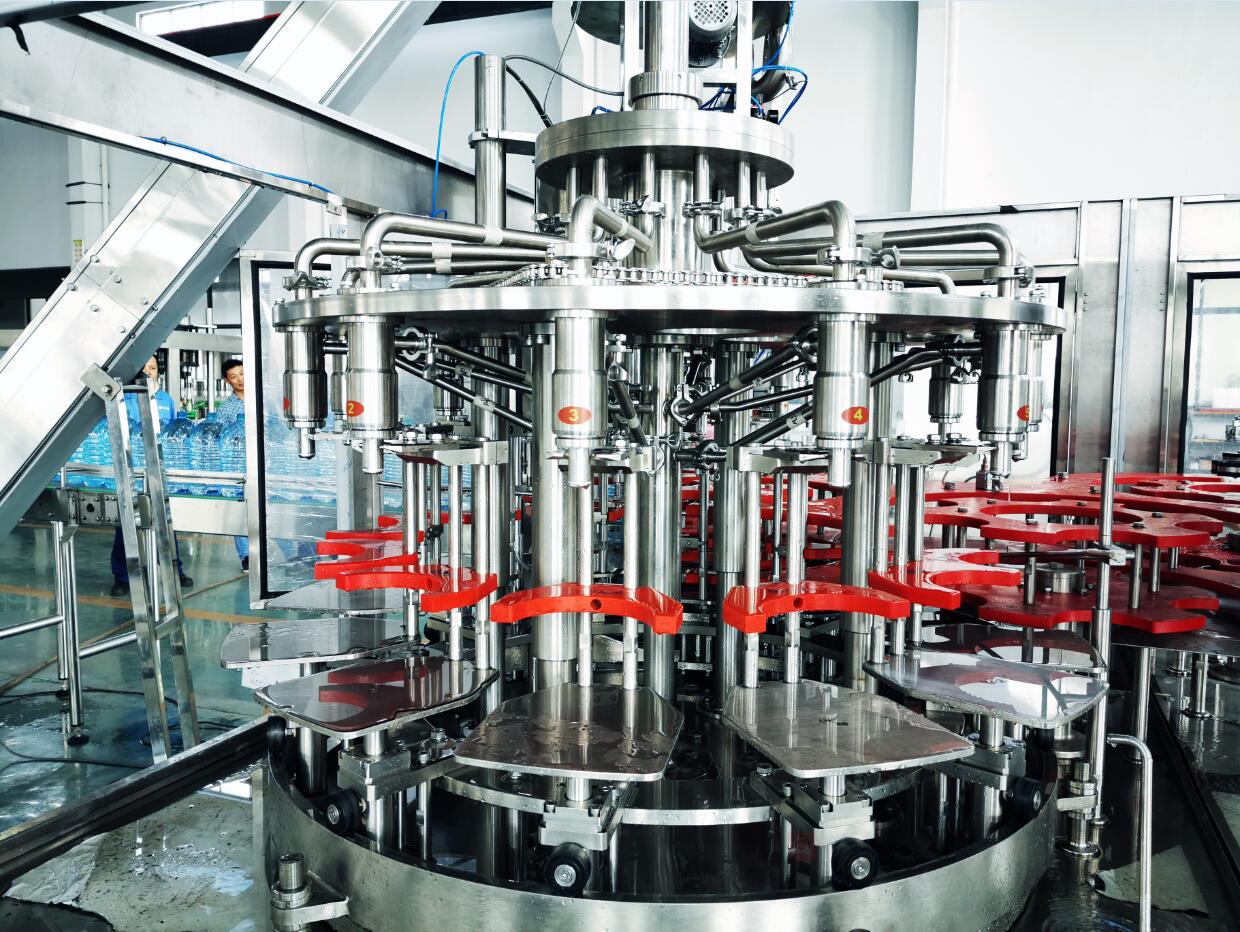

2. Rinser

The rotary wheel is a fully SUS304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.

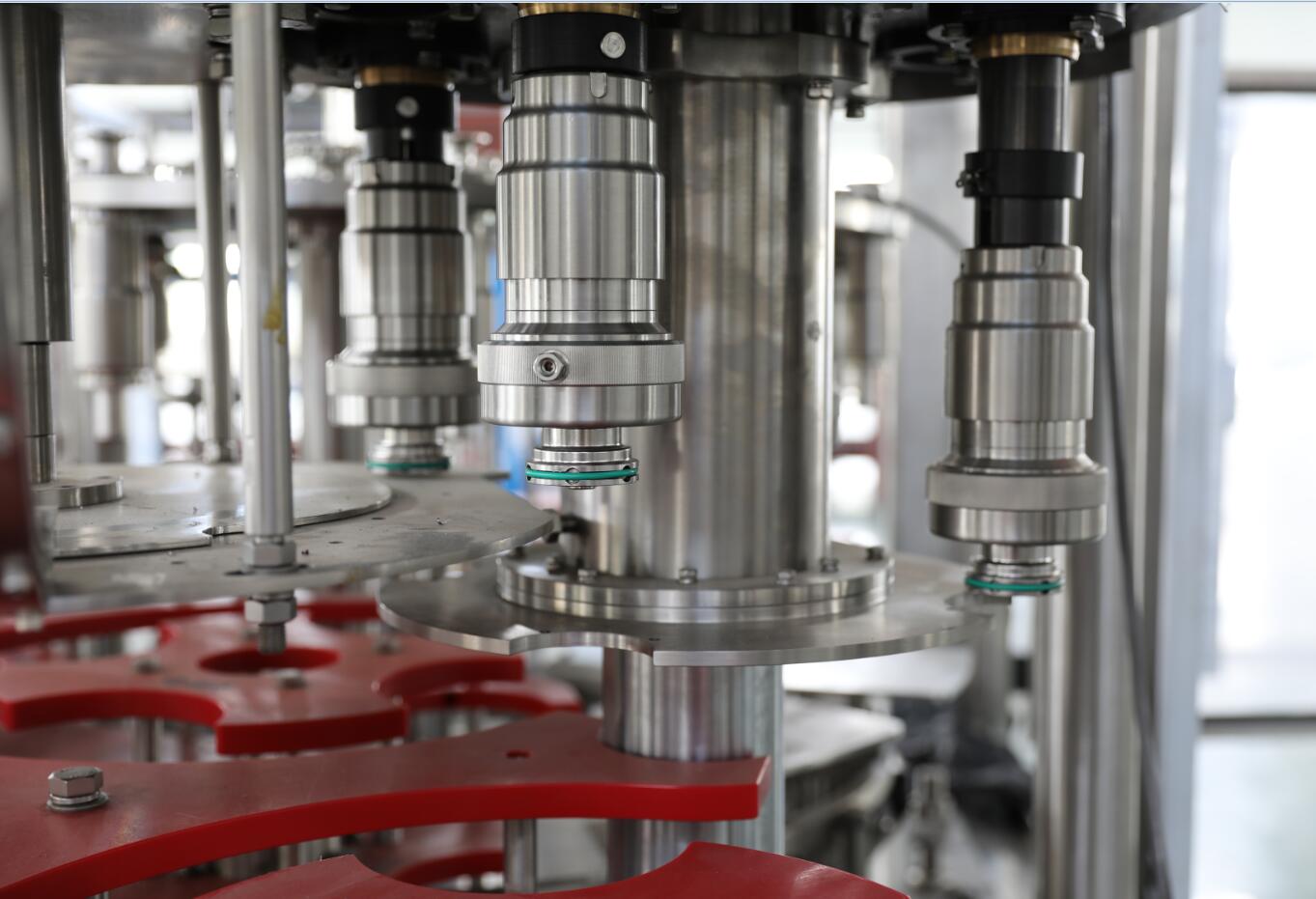

3. Filler

Rotary wheel fully made of stainless steel SUS 304.

Gravity filling method.

Filling valves are made of SUS304.

Filling valves are reasonably structured with accurate filling.

Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

Level of cylinder is controlled with float-ball.

Filler is driven through gears inside the machine frame.

Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.

4. Capper

Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute.

The capper is equipped with inlet bottle detection switch.

Centrifugal way of cap arranging is adopted to reduce damage of caps.

5.Main configuration

Touch screen: Mitsubishi, Thinget or Weinview
PLC program controller: Mitsubishi or Omron
Inverter: Mitsubishi or Omron
Photoelectrical controller: AUTONICS
Other electrical components: Schneider
Pneumatic component: Airtac
Pump: Nanfang

About us

Set up in 2008, Sunswell leads the market in the field of liquid bottling, blow molding, labeling, packaging machinery and process technology for water, tea, juice, carbonated drinks, energy drinks, liquid, beer, edible oil, dairy and daily care products, etc.

We can customize liquid food production lines according to customers’ demand. Every customer is the result of our proven experience and innovation. We continually focus on providing customers with advanced technology, engineering and facility that are designed with one motto in mind: ensure you to reach business goals with most optimized planning.

Advantages

Sunswell leads the market in the field of machinery and process technology for liquid packaging

1. the wide range of liquid packaging plant machinery
2. machinery for the most comprehensive scope of processes in connection with liquid packaging
3. worldwide presence
4. 10+ years of global market experience
5. large number of customers worldwide
6. the various range of possible end products

Sunswell is also the exclusive agent of PETALL, a professional air compressor manufacturer.

Leadership in quality and technology from raw material to bottled liquid to recycled plastic chips - Sunswell, A-Z turnkey plant supplier, is known for developing innovative high-end products and new technologies.
