Application :
Fruit juice, NFC juice,energy drinks, ice tea drinks, coffee
beverage,pulp juice , flavored milk , sports beverage drink,ginger
drink , flavored water drinks. Apple juice ,Orange juice, cherry
juice, mango juice ,tomato juice, pineapple juice, guava
juice,passion fruit drinks ,papaya juice.
Products Description:
The machine is mainly used for washing/filling/capping PET bottle
juice, tea drinks and all kinds of energy drink for hot filling.
Only need to change a few spare parts, that can suitable for
filling pure water and mineral water.
Machine frame:
The machine frame is a welded structure of high quality carbon
steel with the surface anti-rust treated and coated.
The machine frame is wrapped with stainless steel sheet (SUS304) .
Driving system of the 3-in-1 Unit is positioned under the machine
table. One main motor provides driving power via gear transmission.
The gear transmission system is an interleaved arrangement of steel
gears and nylon gears.
The output shaft of the main motor is equipped overload protection
to secure machine safety..
Main components configuration:
1. Material of filling valve: Stainless steel 316L available
2. Material of rotary tray and machine platform of rinser and
filler: Stainless steel 304.
3. Main motor: ABB/SEW (Germany)
4. Sliding bearing: Igus (Germany)
5. Frequency inverter: MITSUBISHI (Japan)
6. Touch screen: DIGITAL (Japan).
7. PLC: MITSUBISH (Japan)
8. Pneumatic components: FESTO (Germany)
9. Seals: Busak+Shamban (USA)
10. Photocell switch: BANER (USA).
11. Proximity switch: TURCK (Germany).

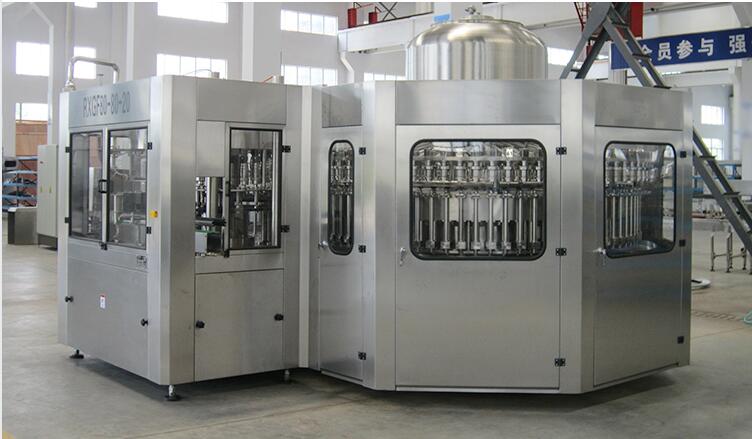

Detailed Image: Equipment structure:
1. Rinsing system: Combined with rotary tray with clamp, water
distributing tray, water tank and rinsing
pump.

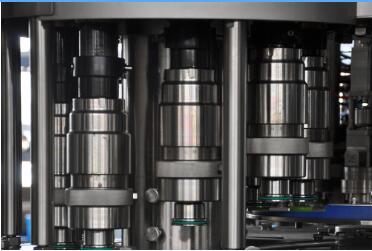

2. Filling system: Combined with hydraulic, filling valve,
controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling
track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel
starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted,
PLC controlled and touch screen operated.
------------------------Bottle infeed----------------------------------Discharge Starwheel--------------------
-----------------------------------Rinser---------------------------------------------------------------------Filler-----------------------
--------------------------------Capper-----------------------------------------------------------------Capper-------------------------------
